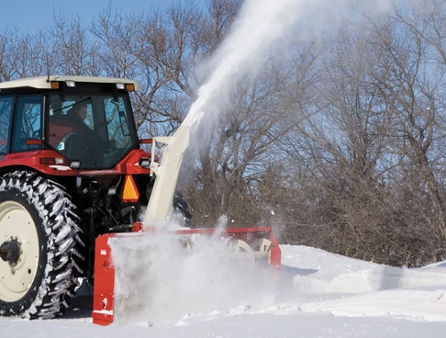

Buhler Farm King has been building reliable snowblowers for more than three decades. Through the years the design has been refined to create an excellent snowblower that is easy to use and maintain.
All models are PTO driven and most models have an adjustable hitch that will easily attach to the 3-point hitch. All snowblowers are quick hitch compatible. Adjustable and replaceable skid shoes, standard on all models, make it easy to set the appropriate cutting height. The 108" models have a replaceable cutting edge.
To move snow faster and greater distances, Buhler snowblowers are equipped with three blade or four blade fans. Dual augers to intake snow are standard on 96" and 108" models and 108" models have replaceable fan housing. Depending on model, the rotation of the spout is controlled hydraulically, or manually using a hand crank. The spout deflector establishes the trajectory of the snow and can be equipped with a 6-position manual adjustment or a hydraulic cylinder kit. No tools are required for the manual adjustment. 7' or 10' extended spouts for truck loading are available on the 108".
Designed for easy maintenance, snowblower models up to 74" have an open gearbox system that is easy to access. Models above 84" feature a closed gearbox housed in a sealed oil bath that is resistant to moisture and dirt. Both gearbox systems are available on 84" models.
The PTO and sprocket to the main auger include shear bolts to minimize damage in the event of debris or overload.
Photos beginning from top

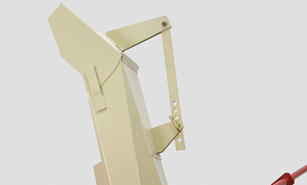

[1] The spout deflector can be equipped with a hydraulic cylinder kit or a 6-position manual adjustment.

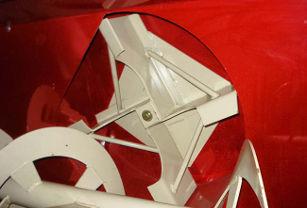

[2] All Models Upgraded to 4-blade fan.

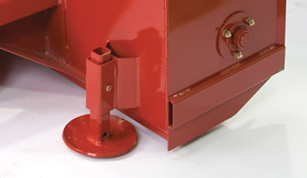

[3] Adjustable and replaceable skid shoes are standard equipment.

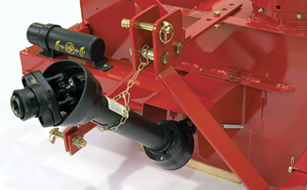

[4] Most models feature an adjustable hitch that is designed to adapt to 3-point hitches of varying lengths and heights, which reduces stress on the PTO shaft.
|
1
2
3
4
 |
